1955 Fender Deluxe Tweed Small Box Narrow Panel Vintage Tube Amp 5E3 Circuit w/ Jensen P12R Speaker


+ shipping

Out Of Stock

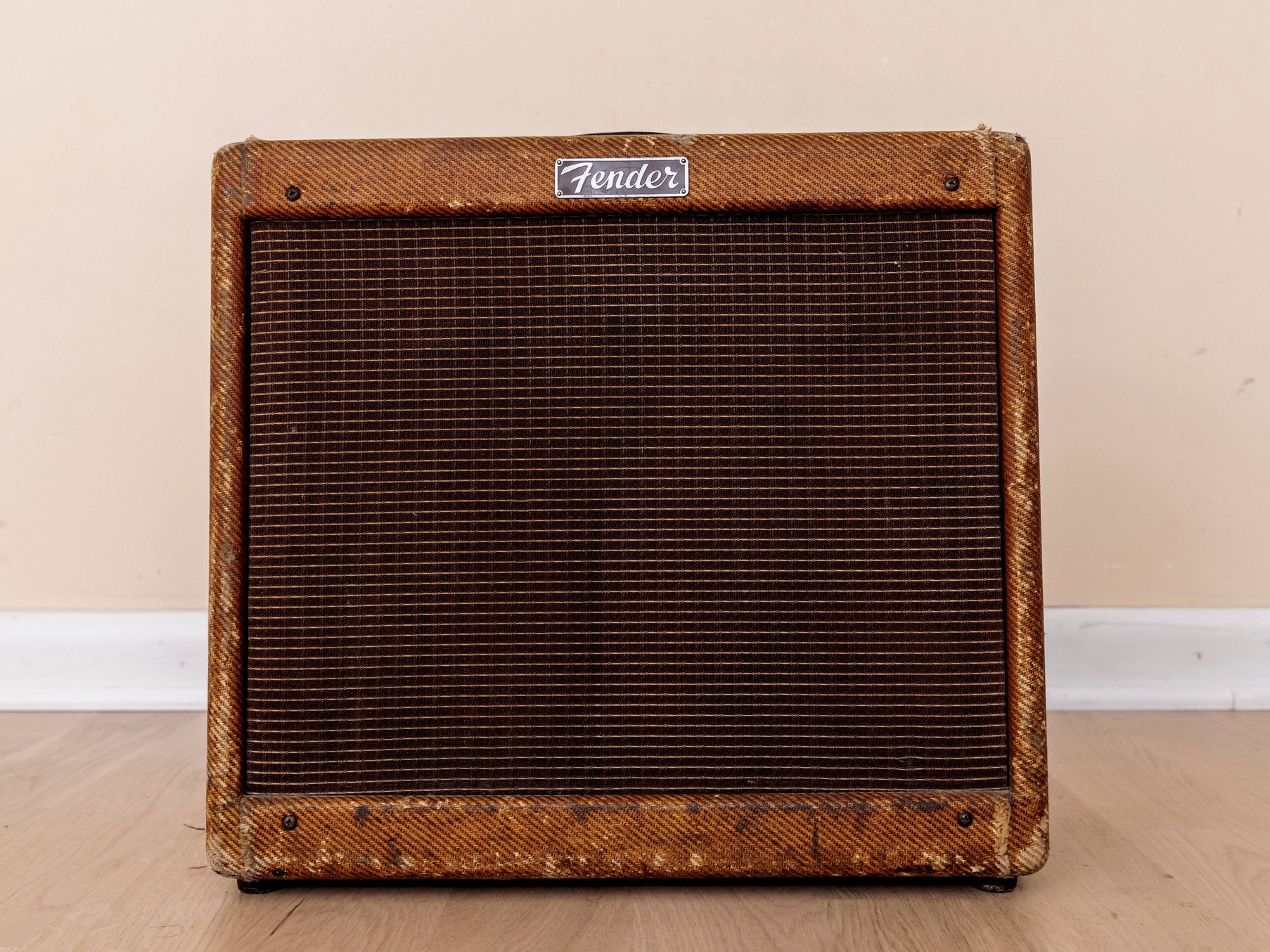

Up for sale, a 1955 Fender Deluxe in excellent condition and in perfect working order. This first-year iteration of the narrow panel 5E3 Tweed-era circuit has the distinctive "small box" cabinet seen only on Deluxes produced in '55, notably more compact than the cabinets used from 1956-60 and significantly rarer.

Few circuits are more desired and emulated than the narrow panel Tweed 5E3, and this amp delivers everything you'd expect from a classic and well cared for amp from the last iteration of the Tweed line. Incredibly dynamic and harmonically rich, the Deluxe can be glassy and clear at low volumes, but for most players the magic is in this amp's overdrive capabilities. Especially when connecting the two channels with a small jumper 1/4" cable, the interactive pair of Volume controls can dial in everything from fully saturated roar and snarl, to the particular sweet buzzy qualities with ideal midrange bite that you often times can't coax out of any other Tweed circuit. This amp reacts well to a host of effects pedals and different guitars, but truly shines with the guitar plugged straight into the amp, using your volume knob to coax clean rhythm tones and singing leads with the twist of a knob.

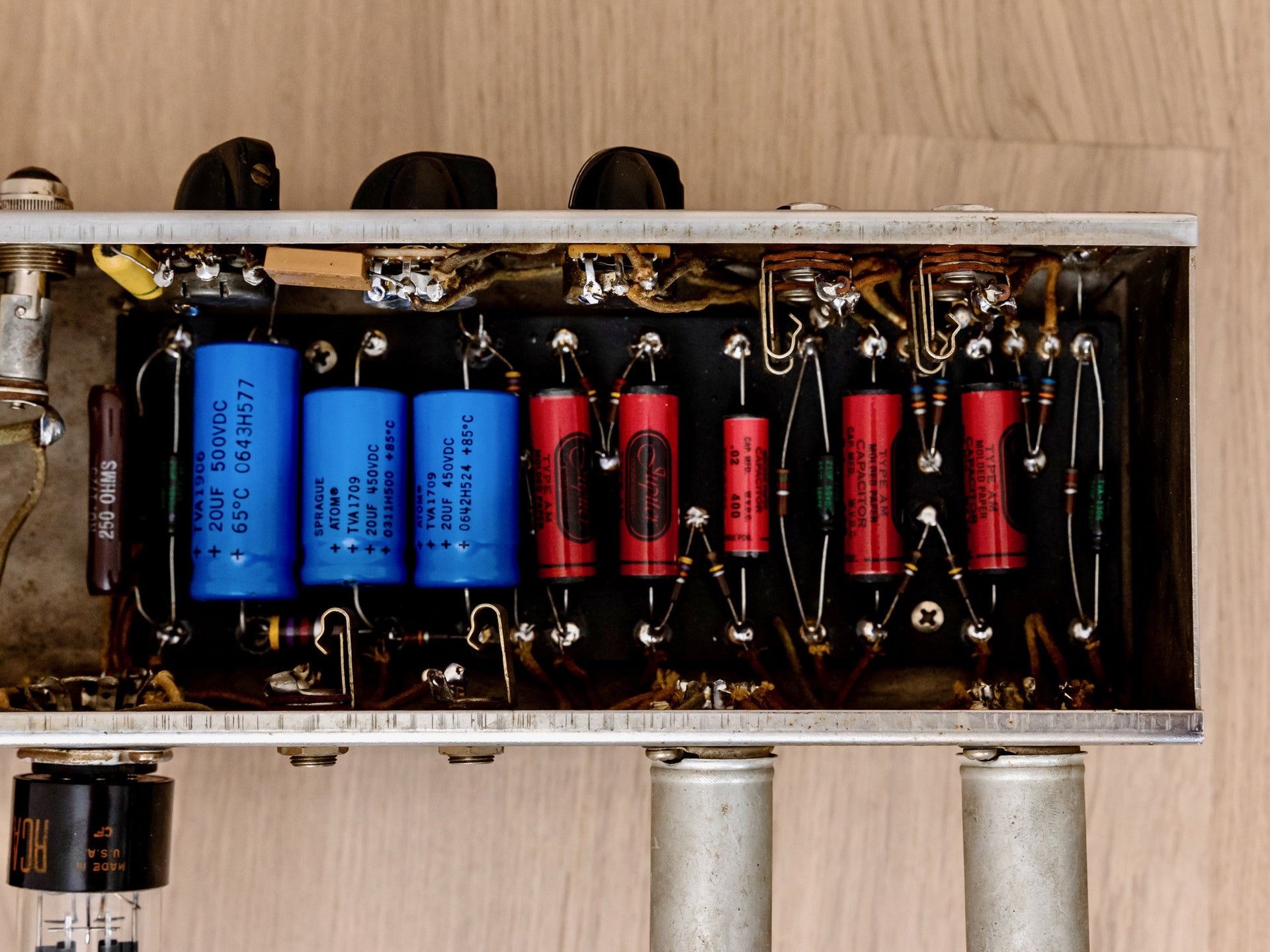

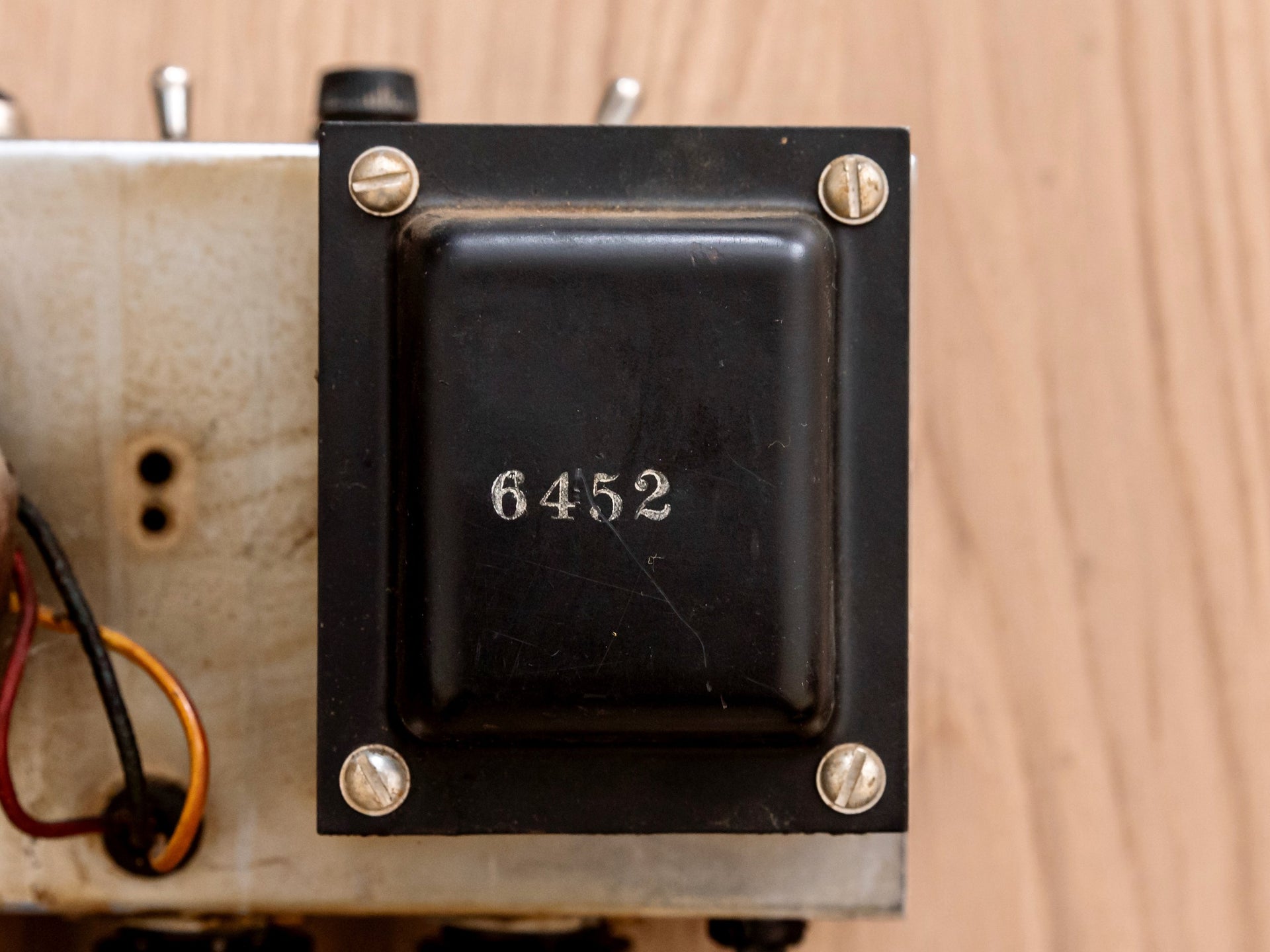

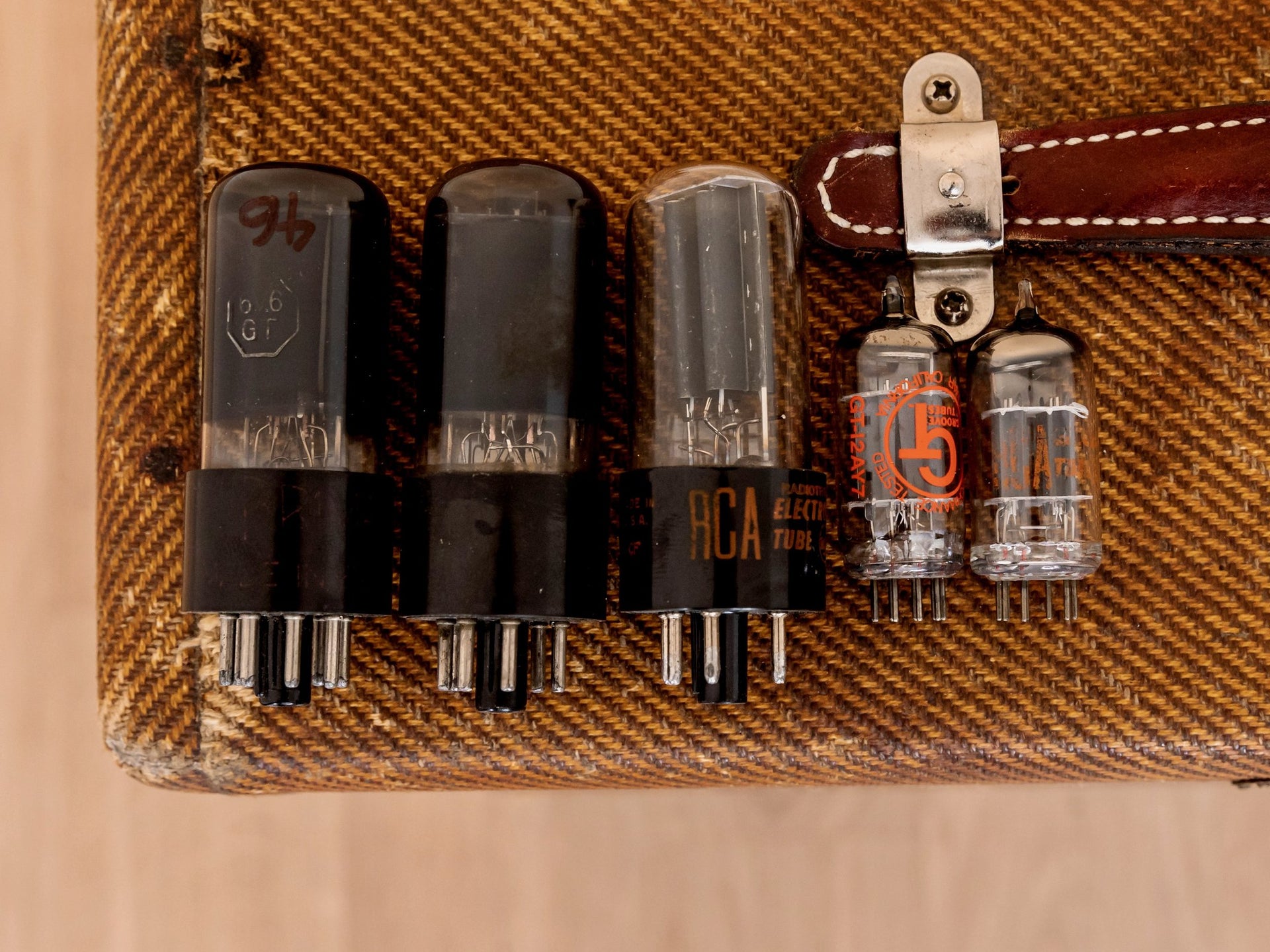

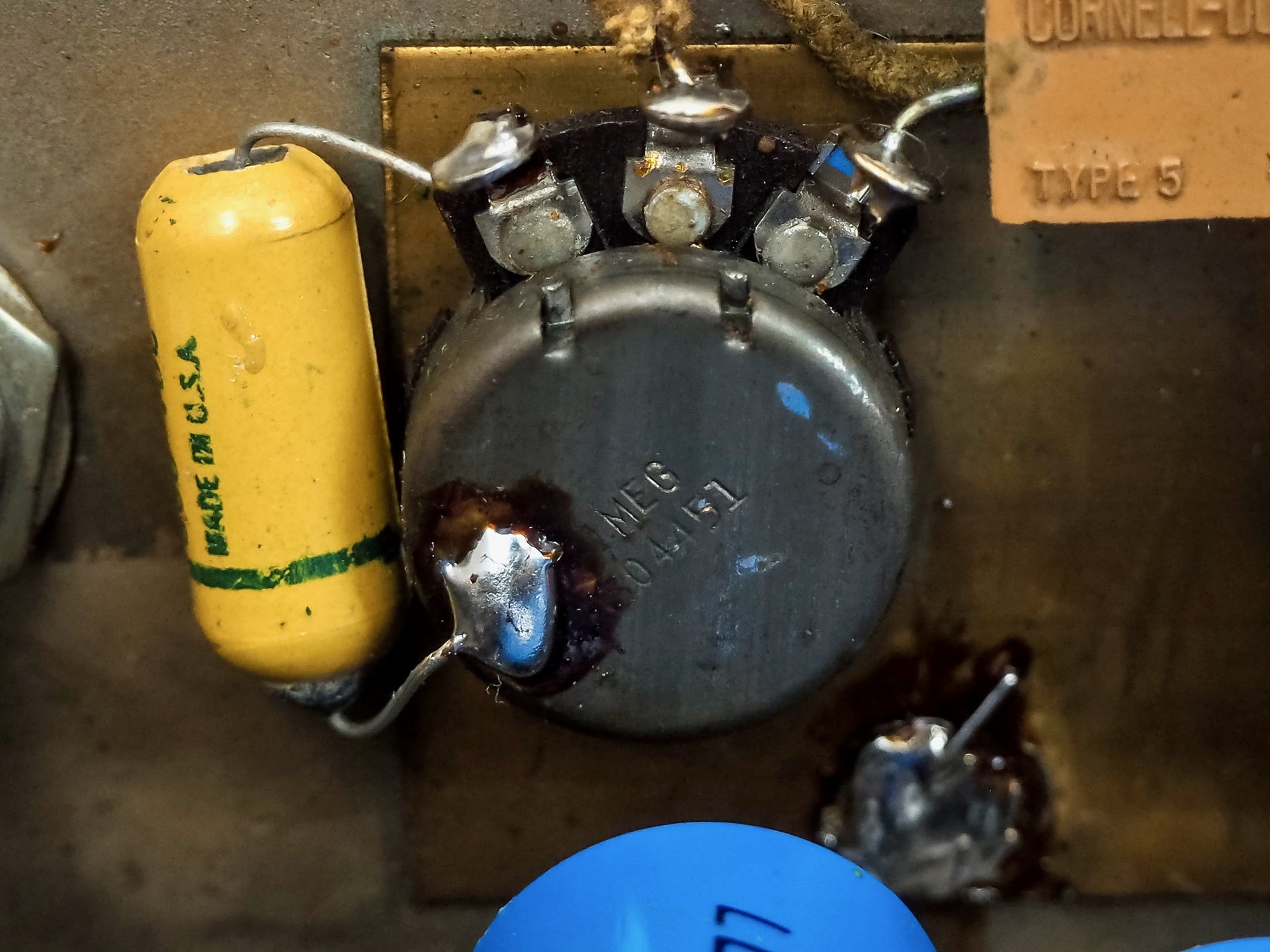

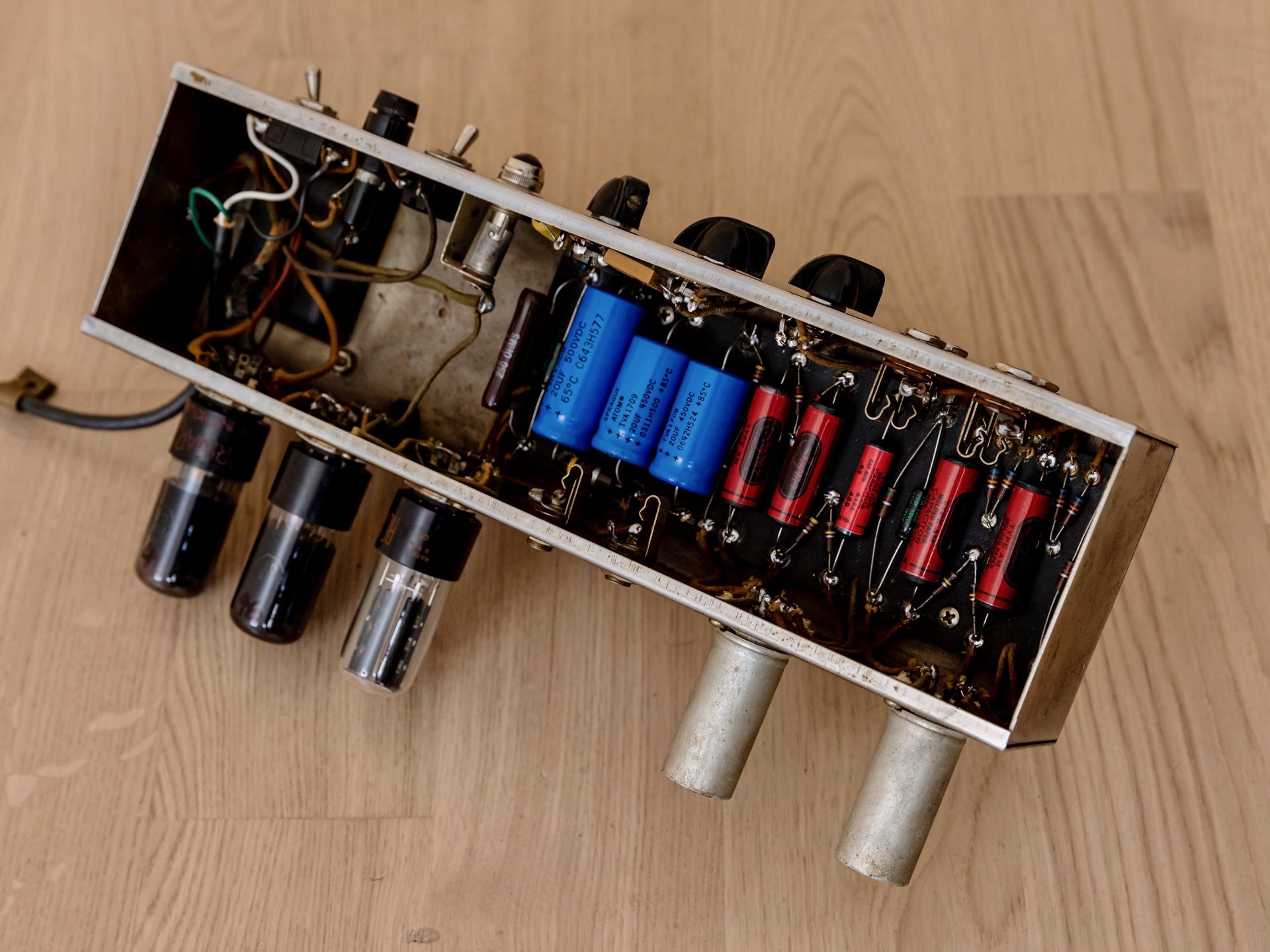

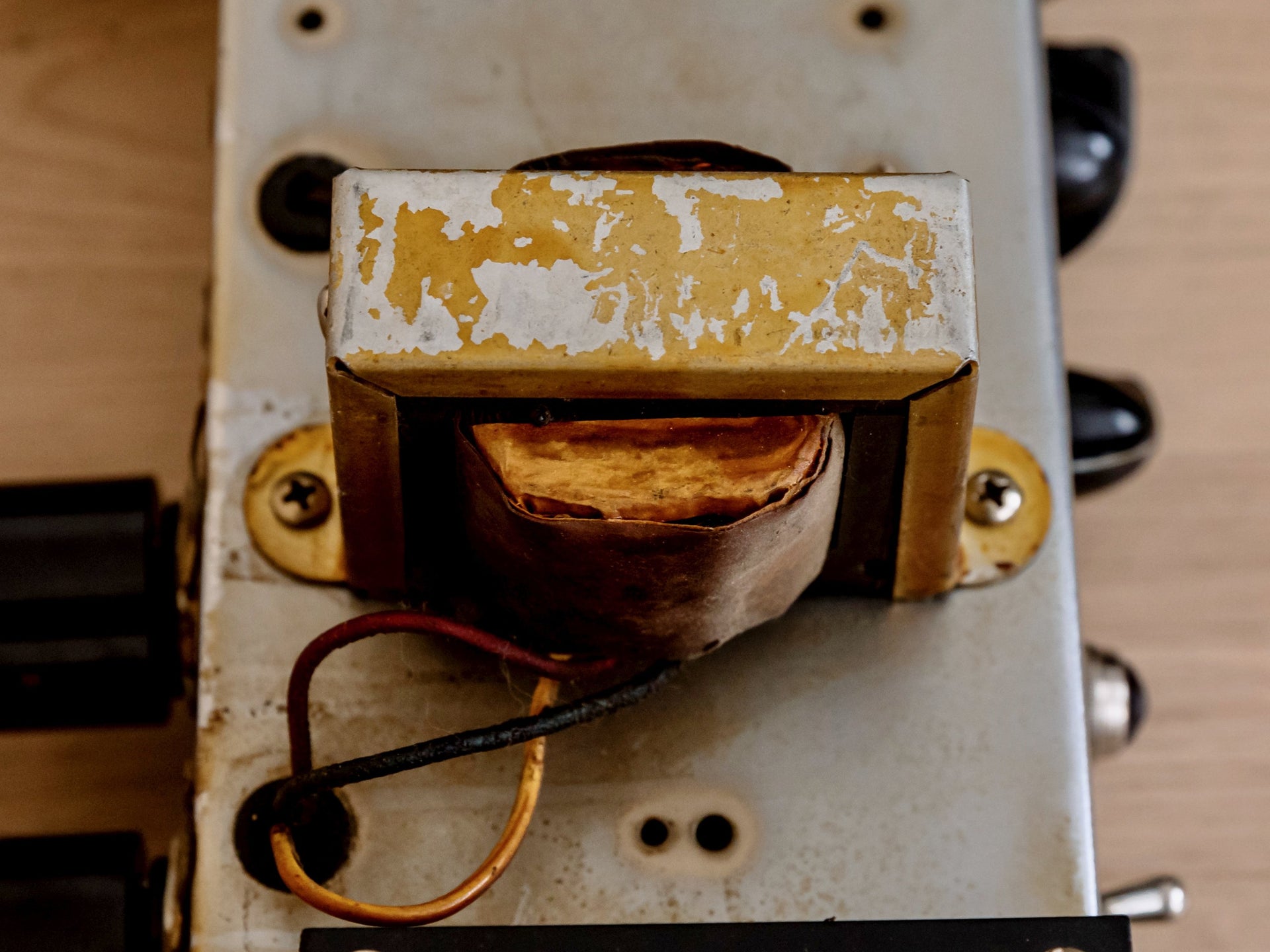

The circuit is extremely original, boasting both stock Triad transformers. The amp has been freshly serviced by our techs here at Mike & Mike's Guitar Bar with new Sprague Atom filter caps and smaller electrolytics. The amp is loaded with red Astron-style modern Jupiter caps in the preamp, with two newer CTS pots and one original Stackpole pot which dates back to the 51st week of '54. The Stackpole Tone pot also retains its original yellow Astron capacitor and distinctive "domino" Cornell Dubilier resistor. Tubes include matched RCA 6V6 power tubes, a vintage 5Y3 rectifier and one vintage RCA preamp tube paired with a complimentary modern Groove Tubes-branded valve.

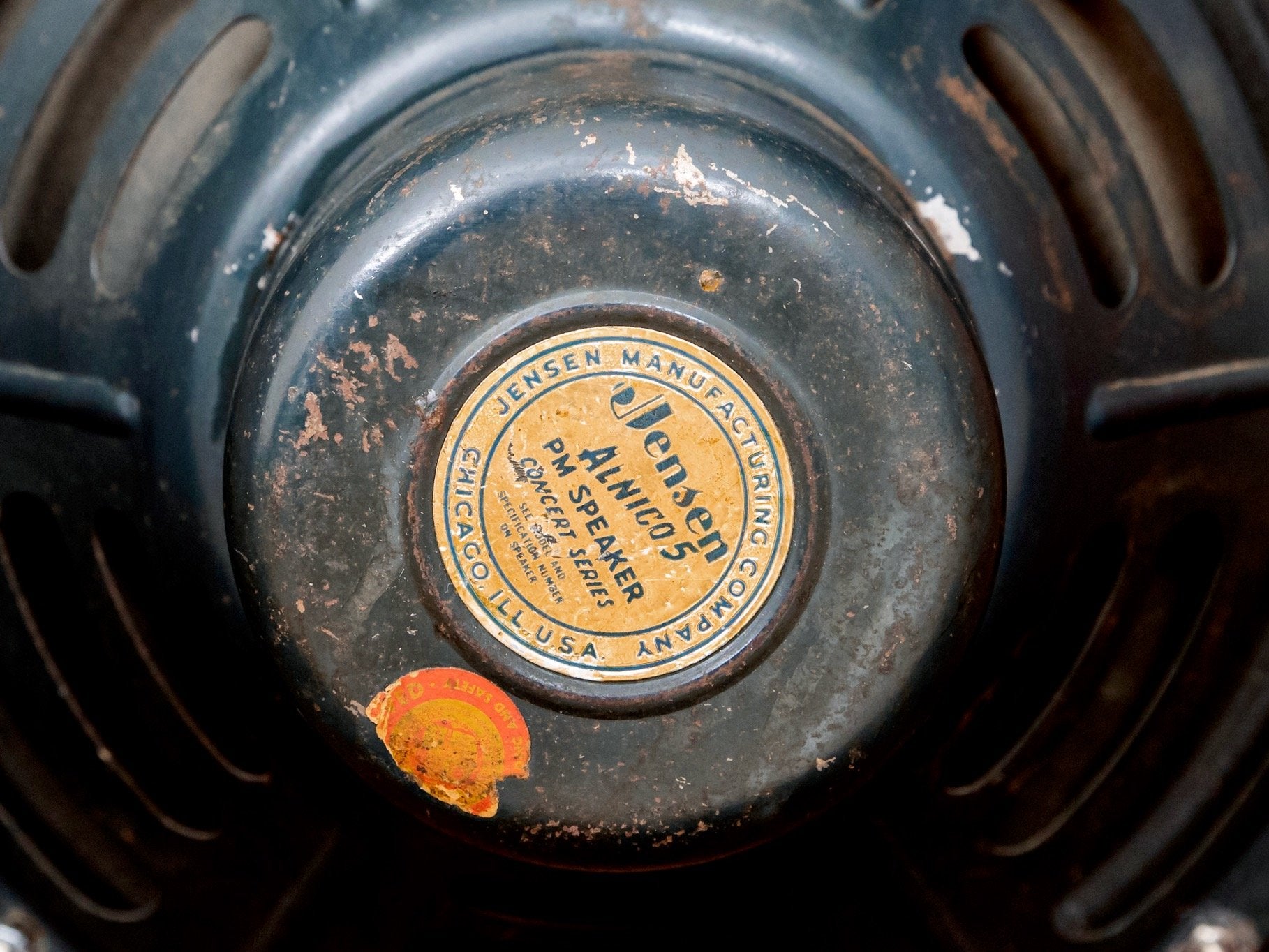

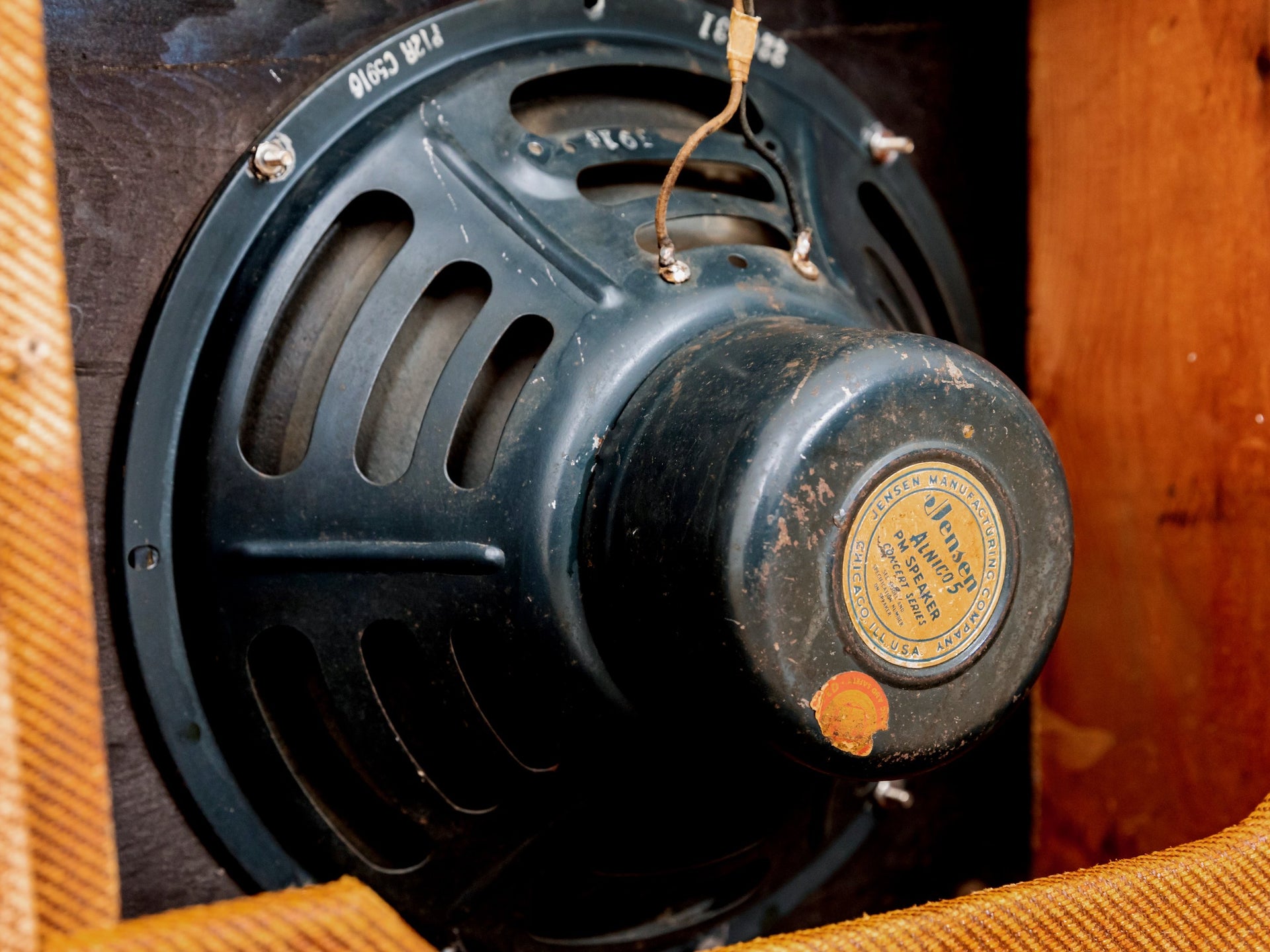

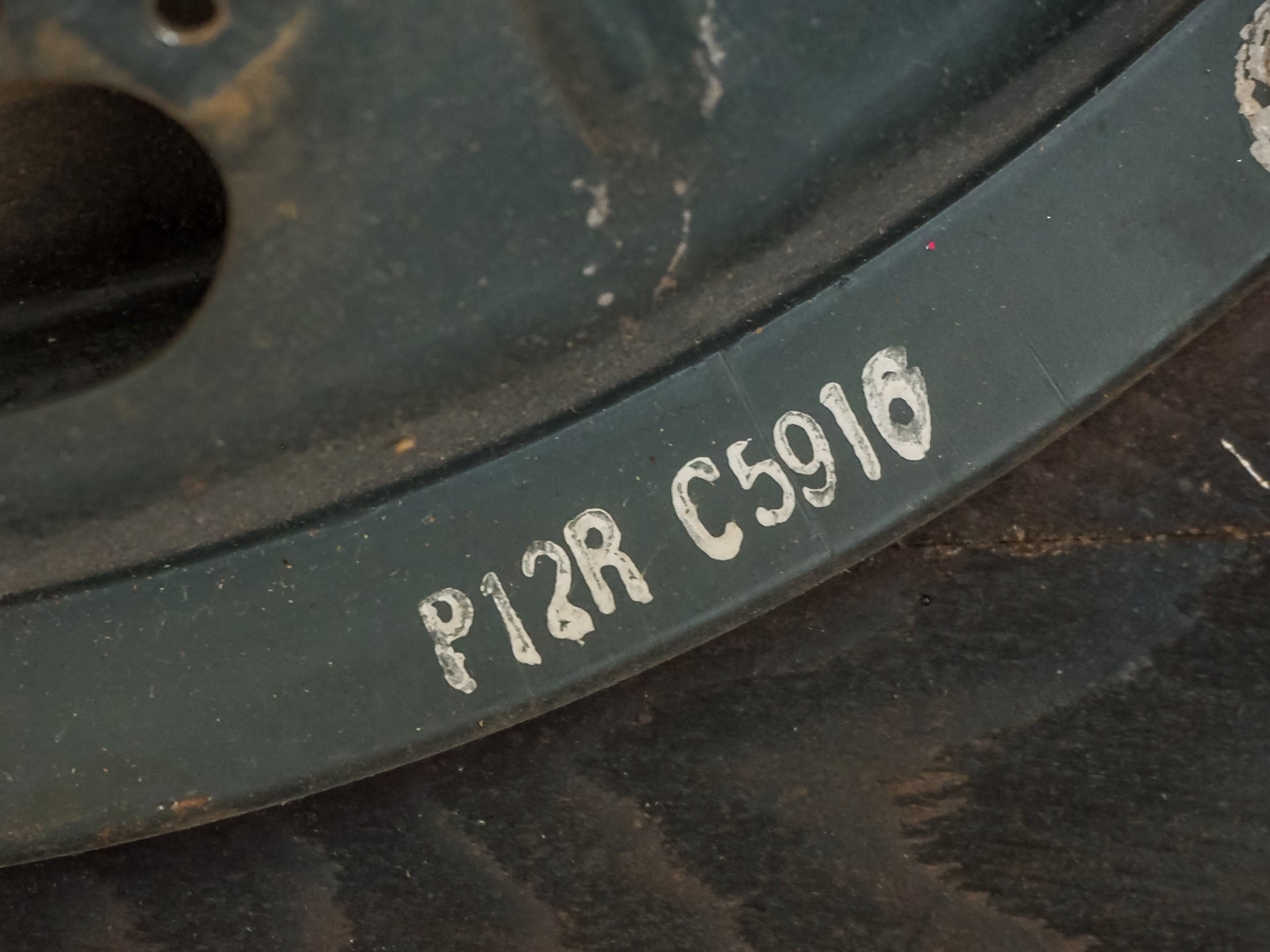

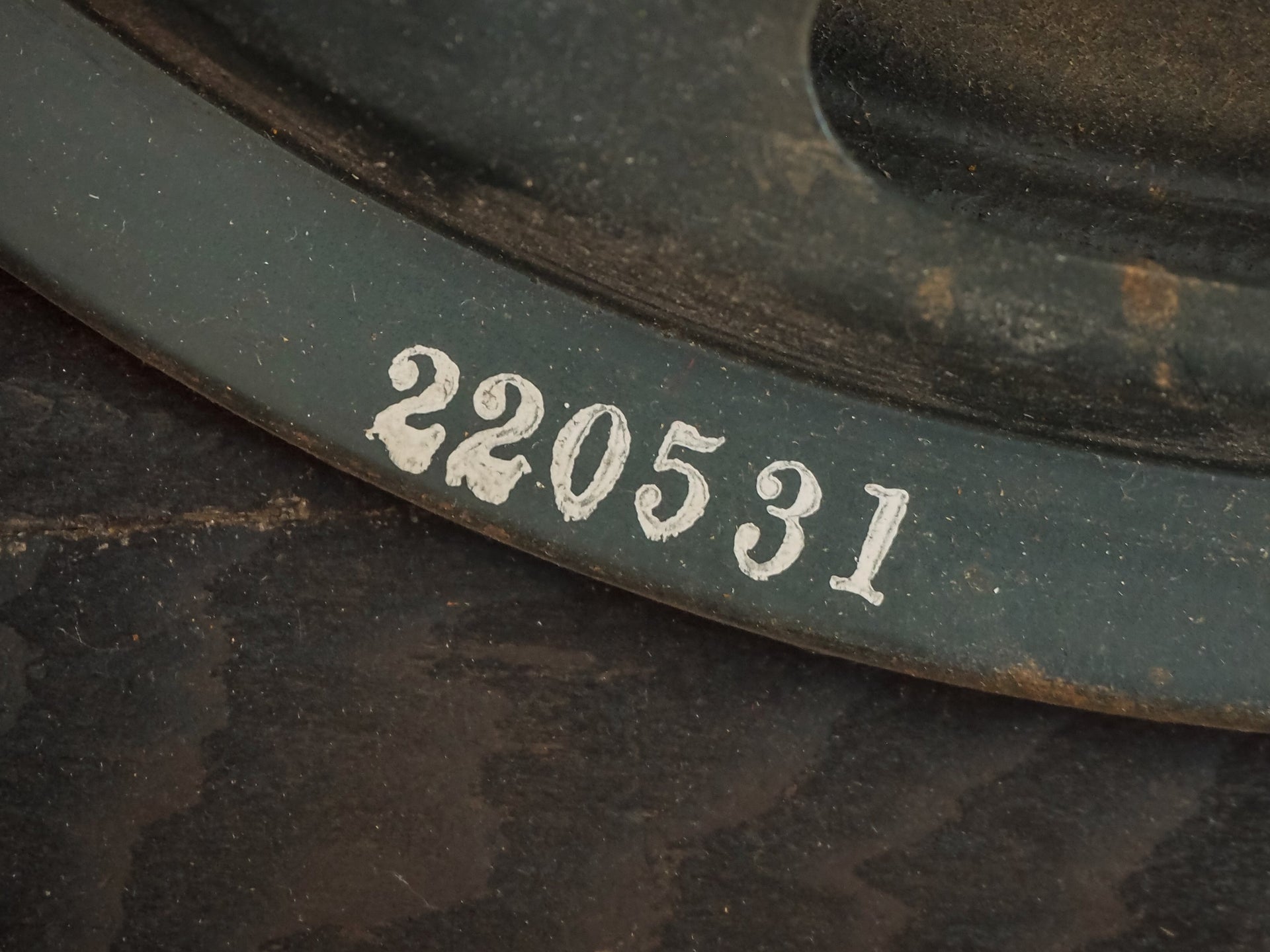

The speaker is the original Jensen P12R alnico 12" driver with a recent recone. This speaker dates to the 31st week of '55 and retains the original Jensen foil label on the magnet bell as well as the speaker harness with cloth-covered wire and stock 1/4" input. The tube chart is intact with a handwritten serial that matches the chassis and an "EH" date stamp which translates to August of 1955. The chassis itself retains the identical "EH" stamps.

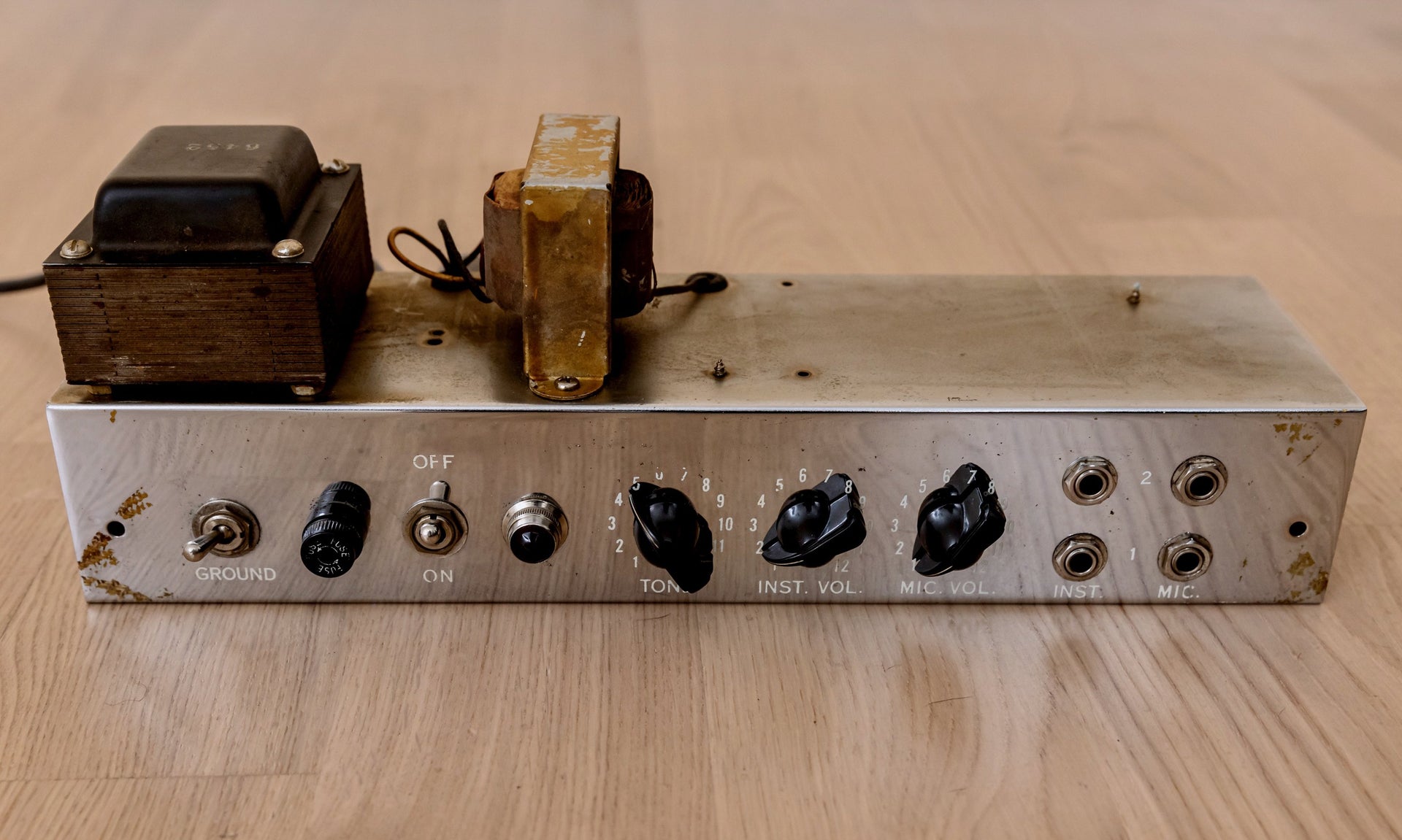

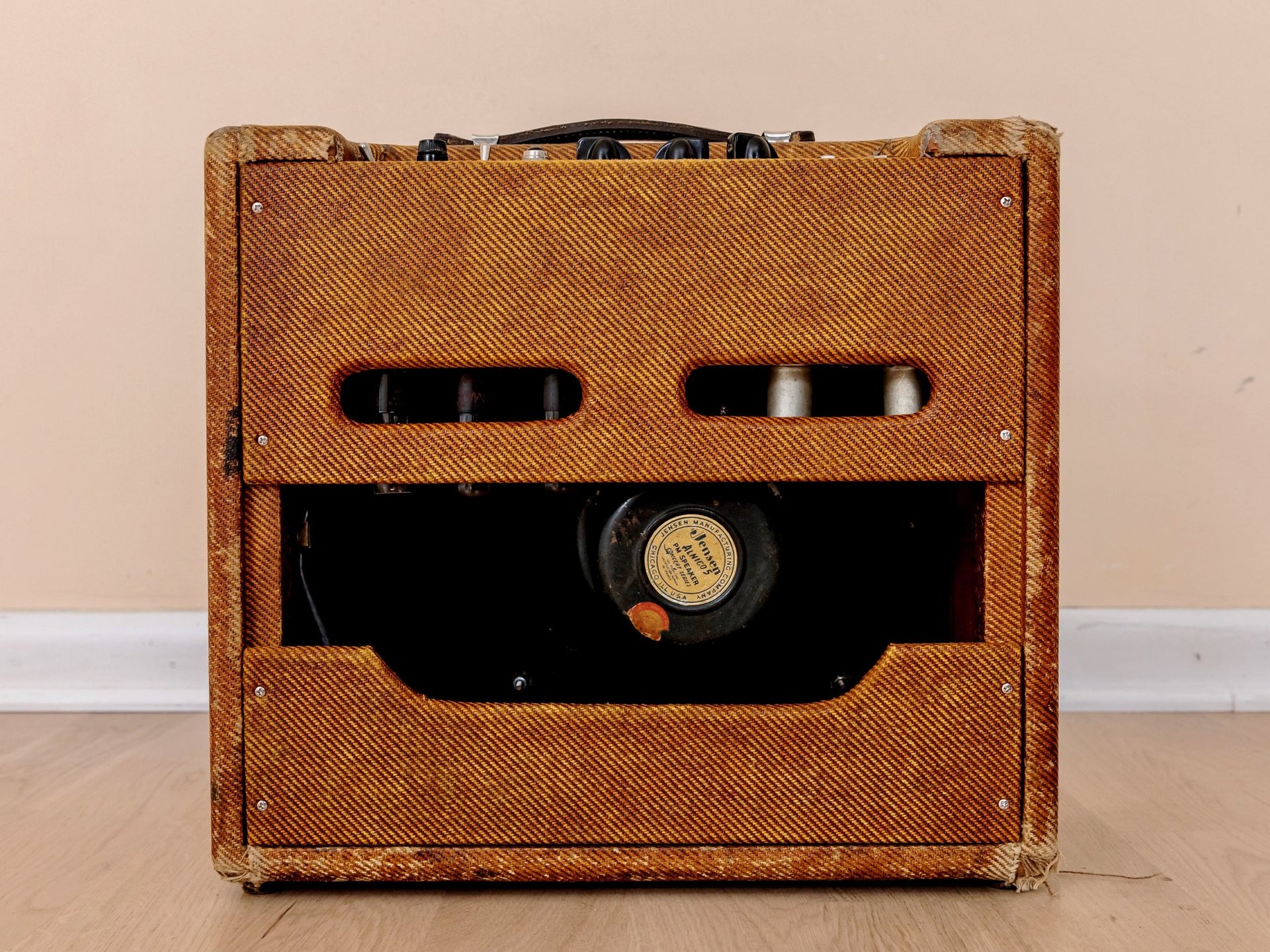

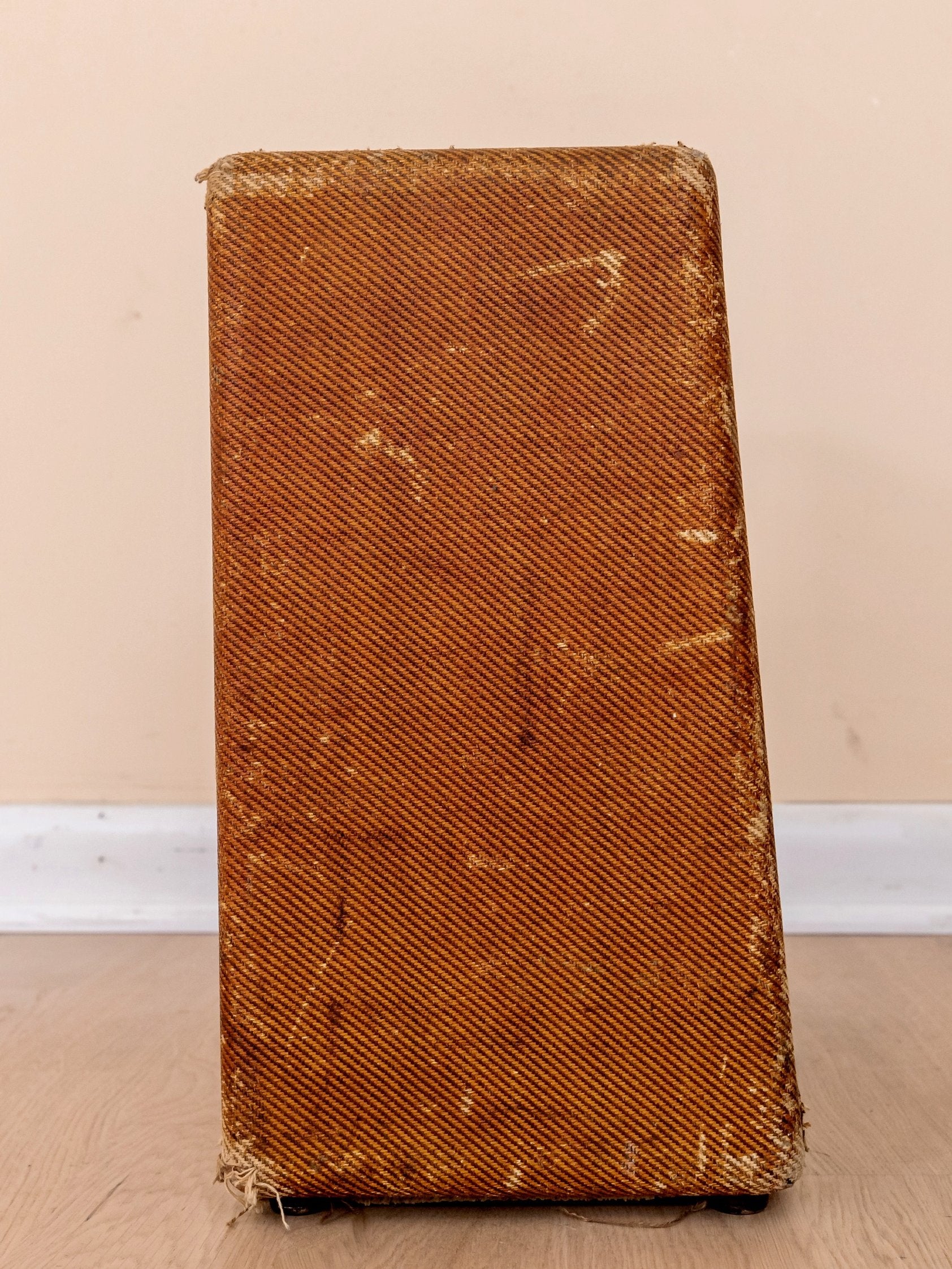

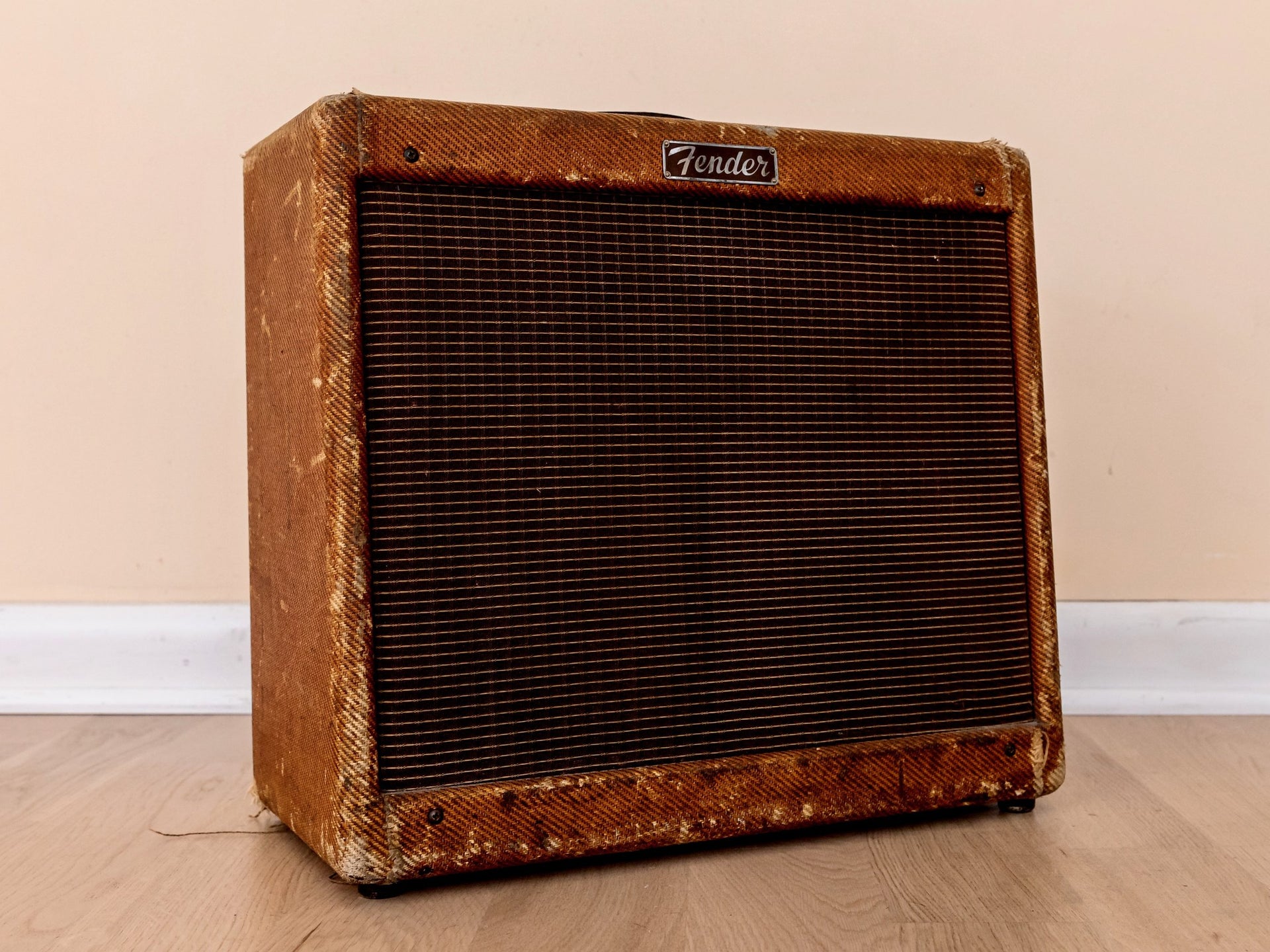

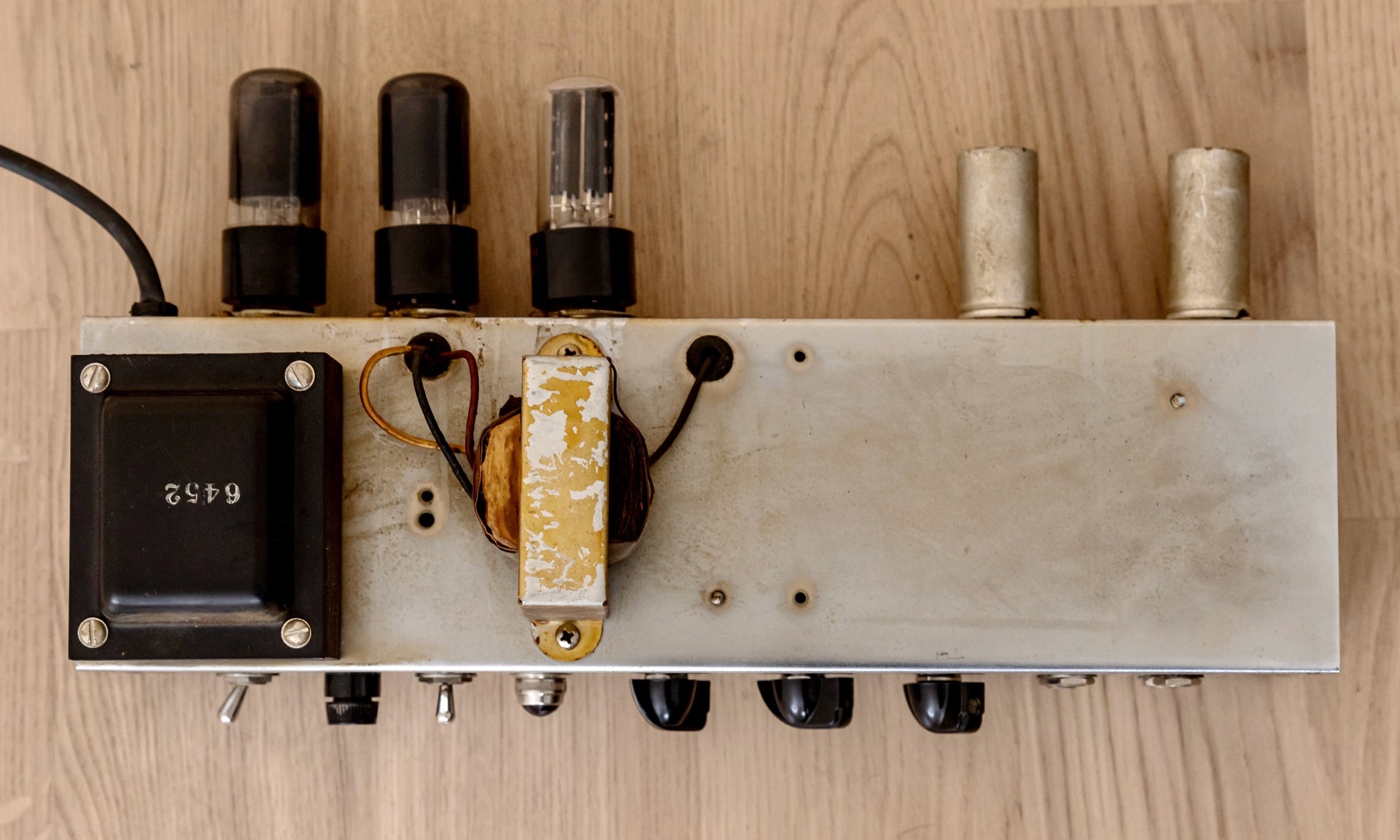

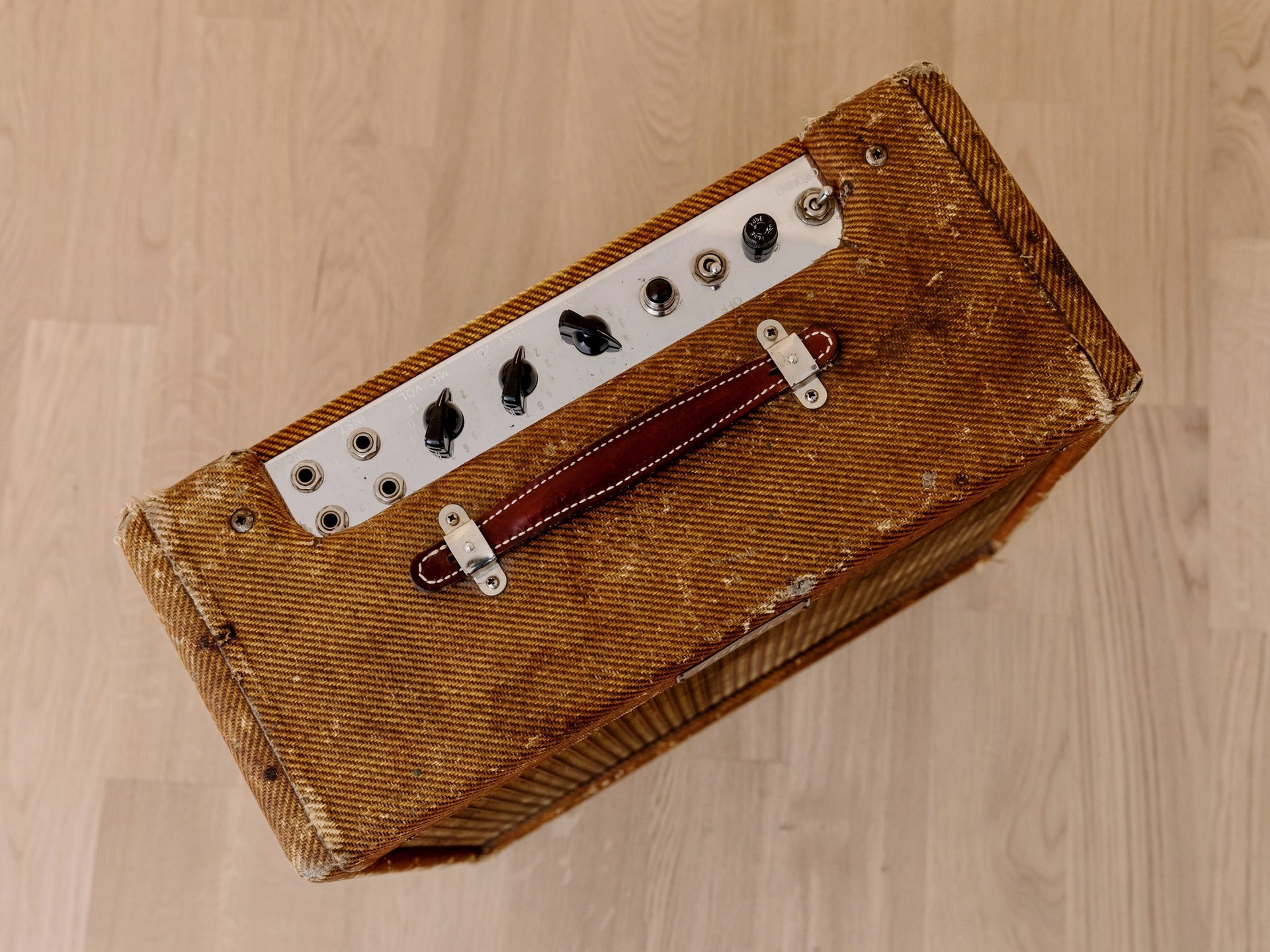

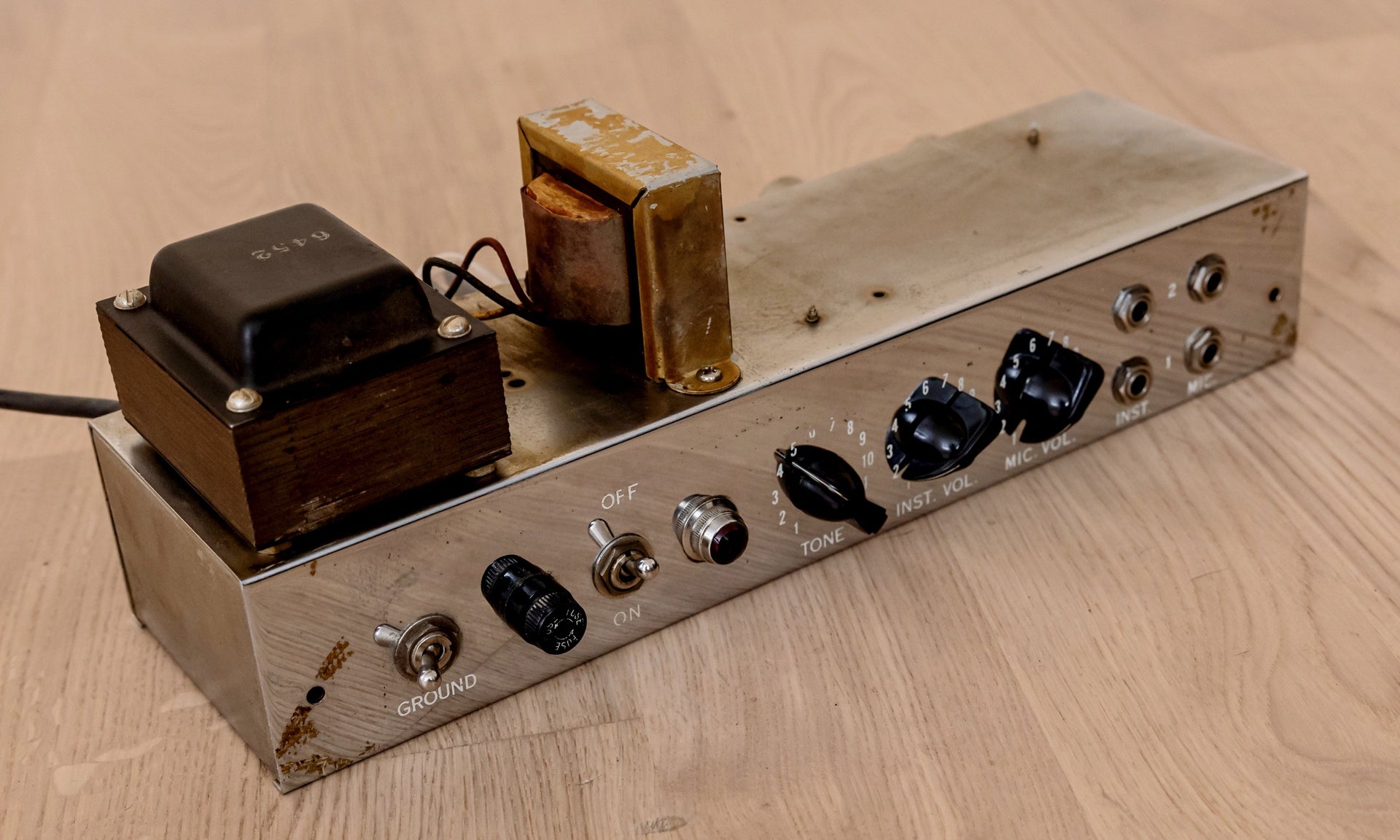

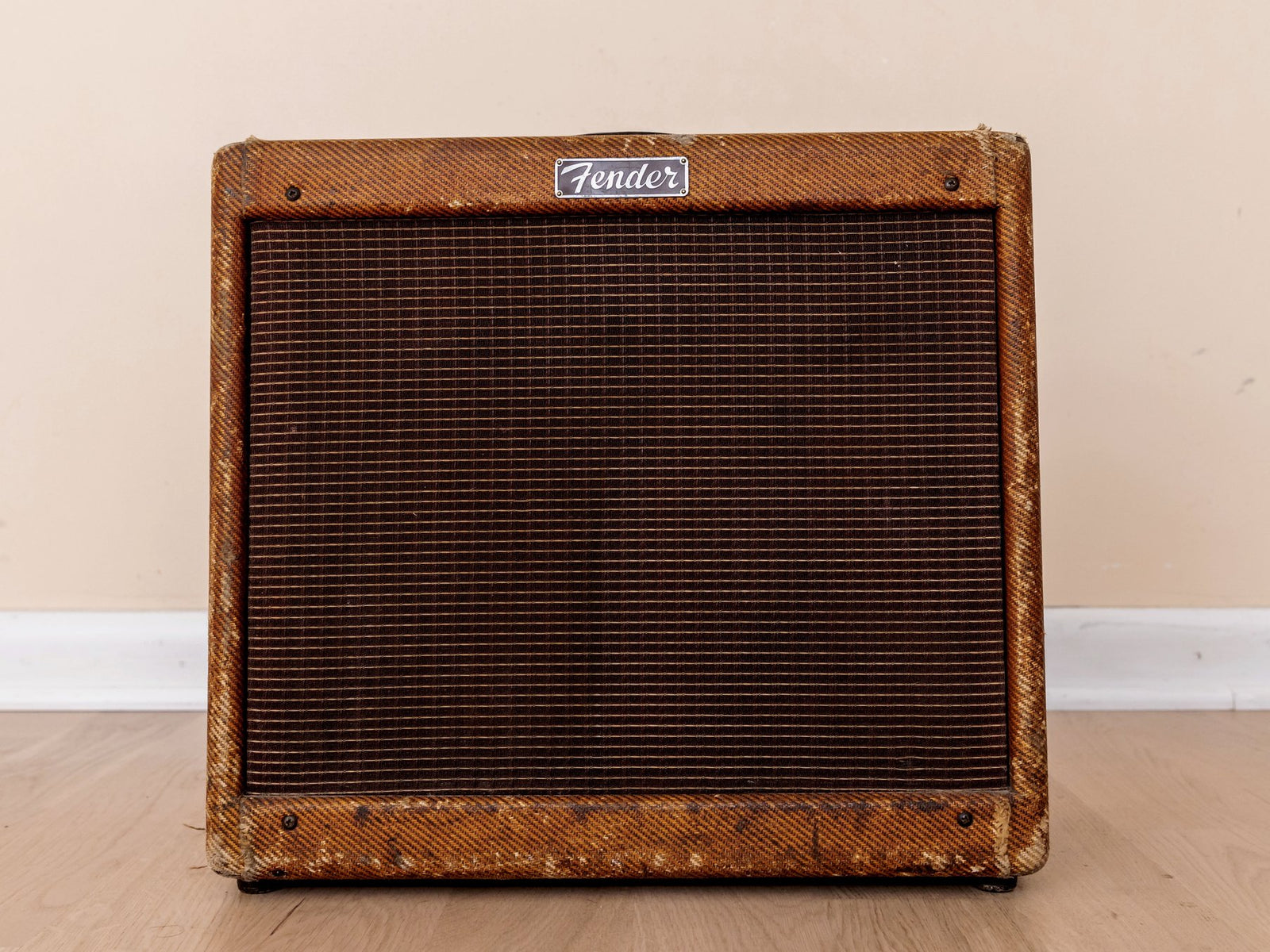

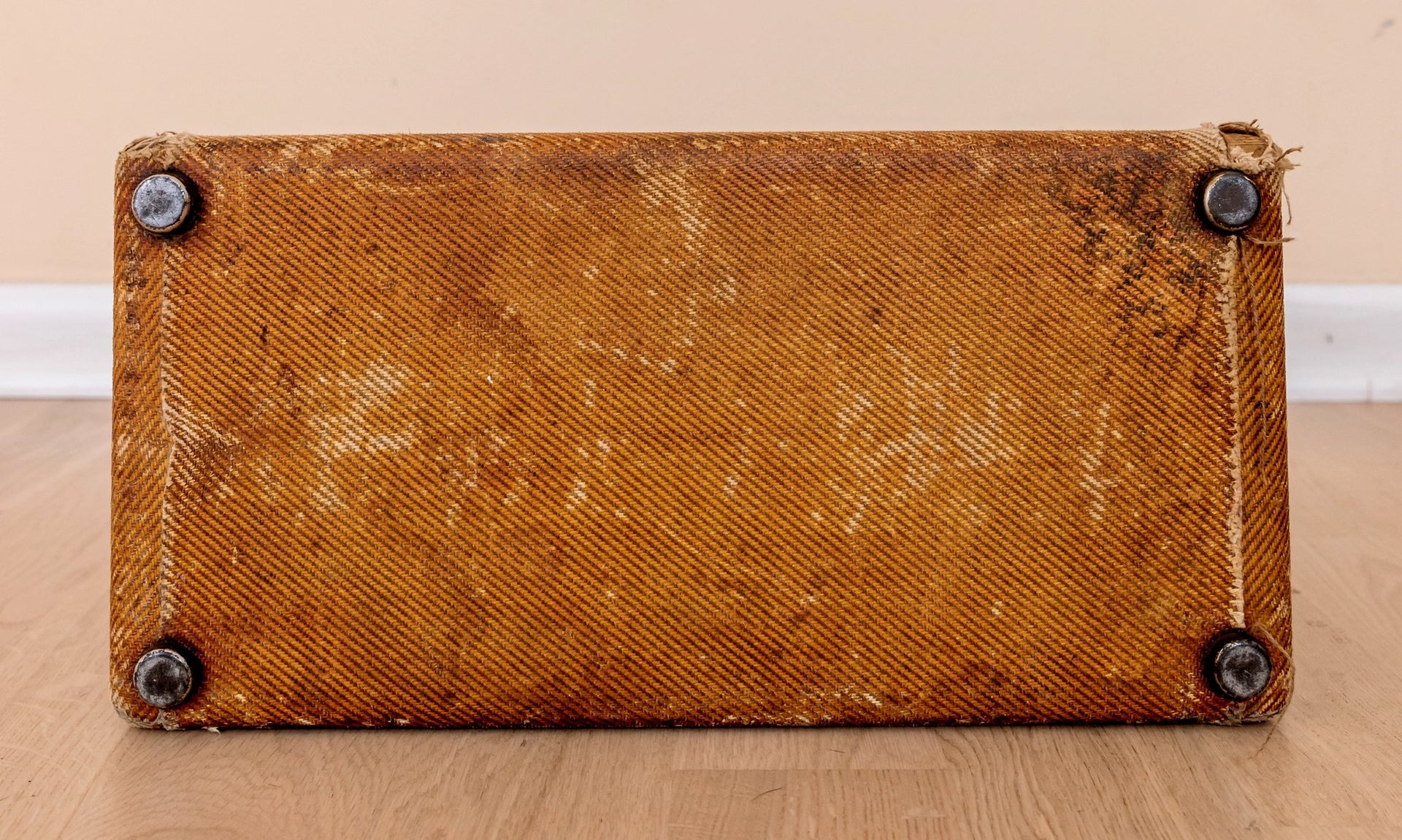

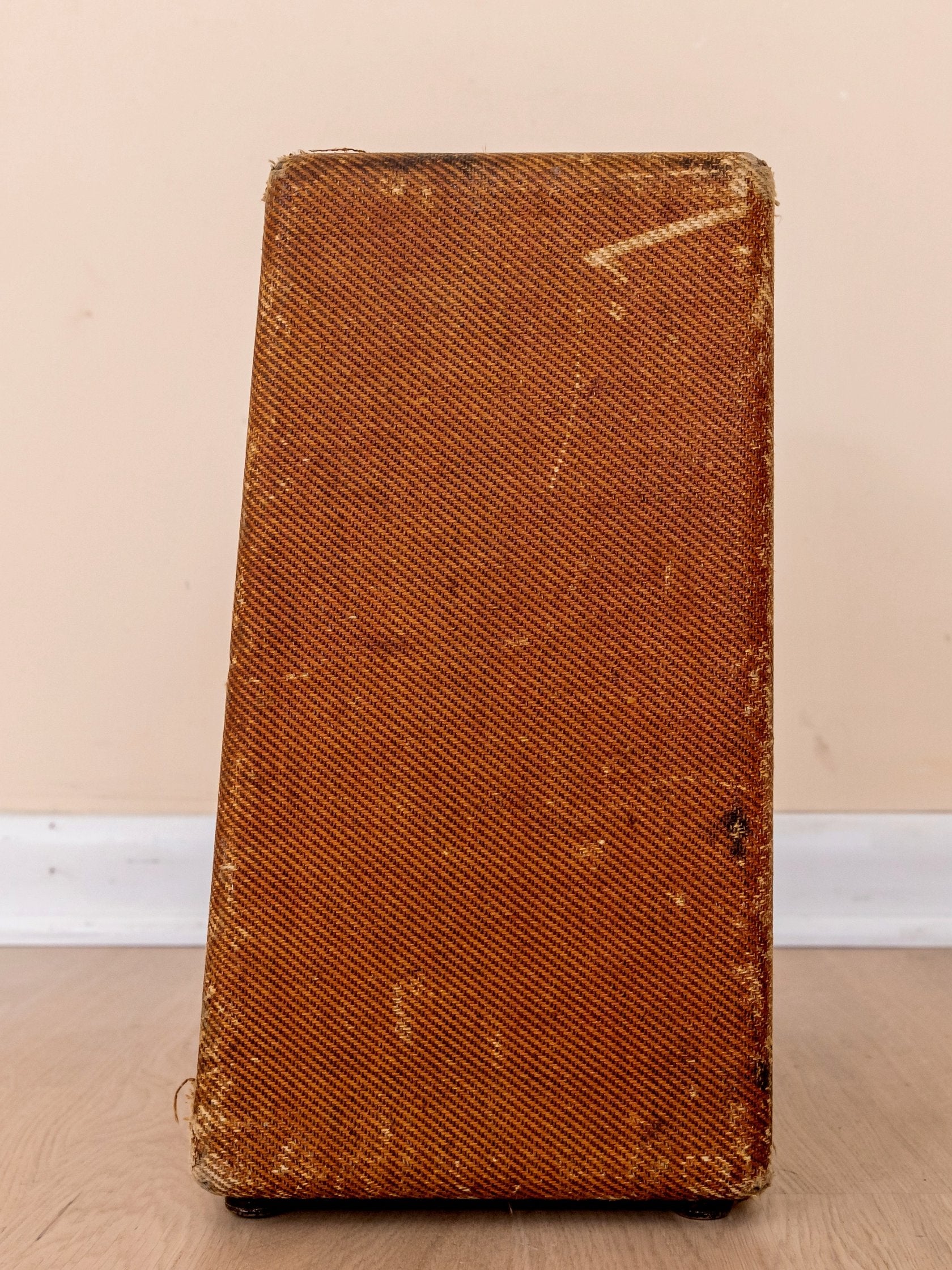

The chrome on the chassis is incredibly clean, shining like few Tweeds still do with all of the original white text present along with stock chicken head knobs. The original tweed shows deep ambering and some light wear on the enclosure edges. The original oxblood grillcloth with gold stripe is also intact and in great shape. The leather handle is a modern replacement, and the back panels are custom made to fit the unique small box cabinet, both featuring new tweed aged to match the otherwise original covering on the cabinet. The stock badge on the amp's face simply says "Fender," a holdover from the earlier Tweeds before the longer "Fender Deluxe" badge that would be seen in subsequent years.
